I.Athena®Pad Air-(Win) Series Tablet Performance, Physical and Environmental Parameters
| CPU/ graphics | Intel Core M3-8100Y,2 core 4 thread 1.1 GHz, maximum Rui frequency 3.4 GHz/Intel UHD 615, basic frequency 300 MHz, maximum dynamic frequency 900 |
| Operating system | Windows 10 professional version 64 bits / Windows 10 enterprise version 64 bits / Windows 11 professional version 64 bits |
| Memory/ hard disk | 8GB LPDDR3 Samsung 1867MHz /128(Kingston/Solid Hard Disk Customizable 256 GB) |
| User Storage Extension
Interface/communication |
Micro SD Card, support SDXC |
| TYPE-C interface, support host charging, support USB3.0(down compatible USB2.0, support for headphones, etc | |

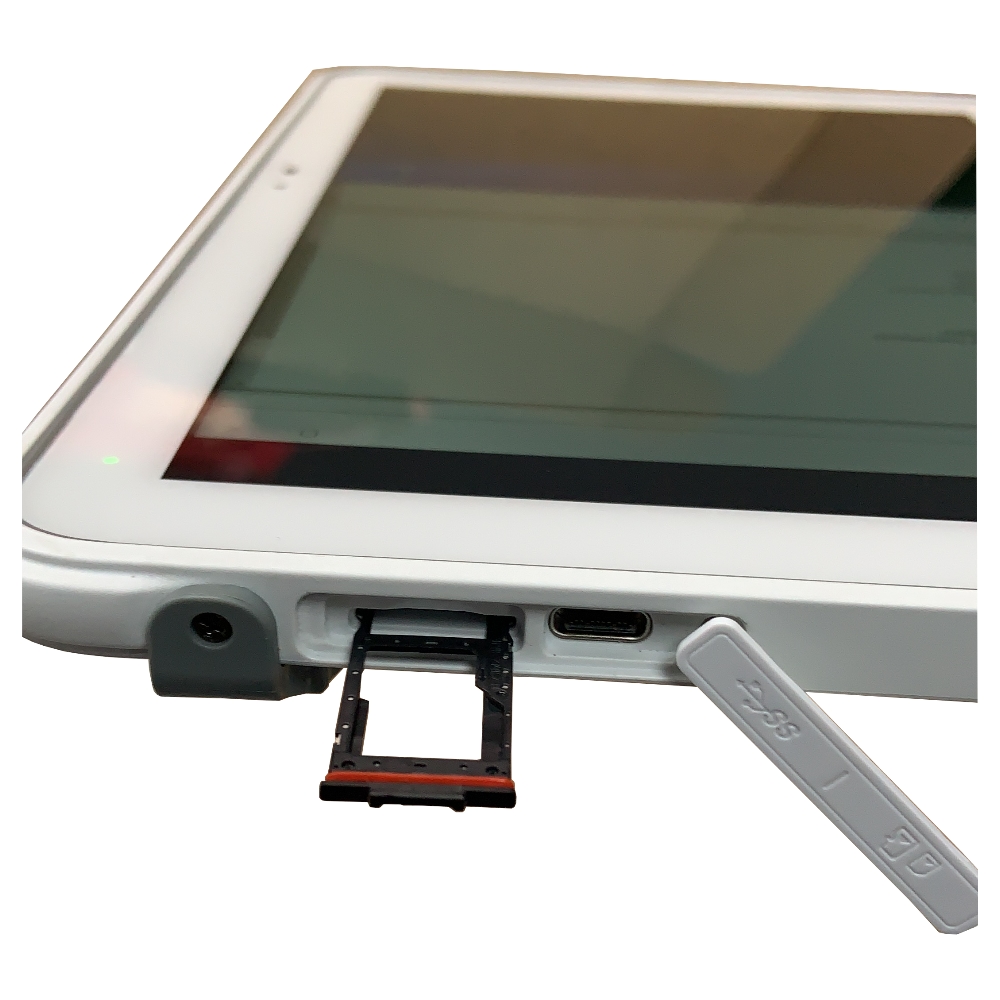

| SIM slot | Nano-SIM card support |

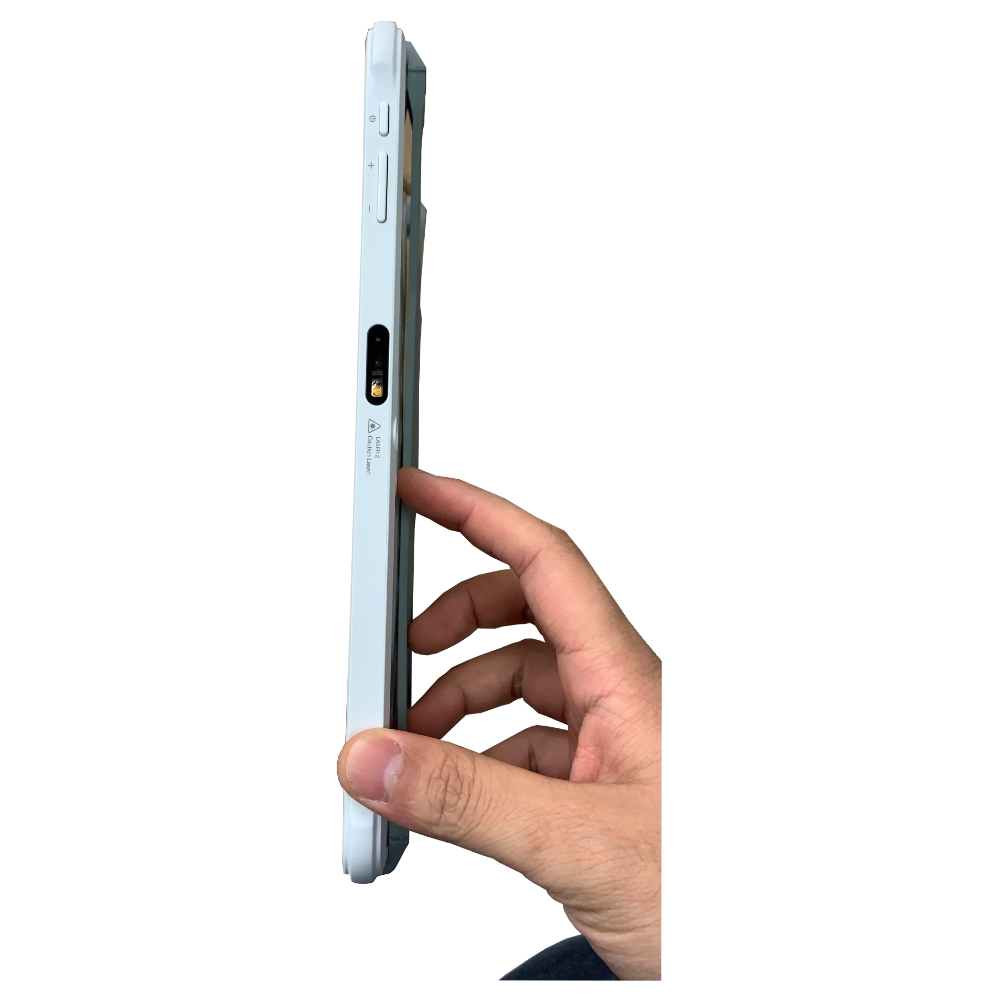

| Press button | 3 buttons (power, volume +、-) |

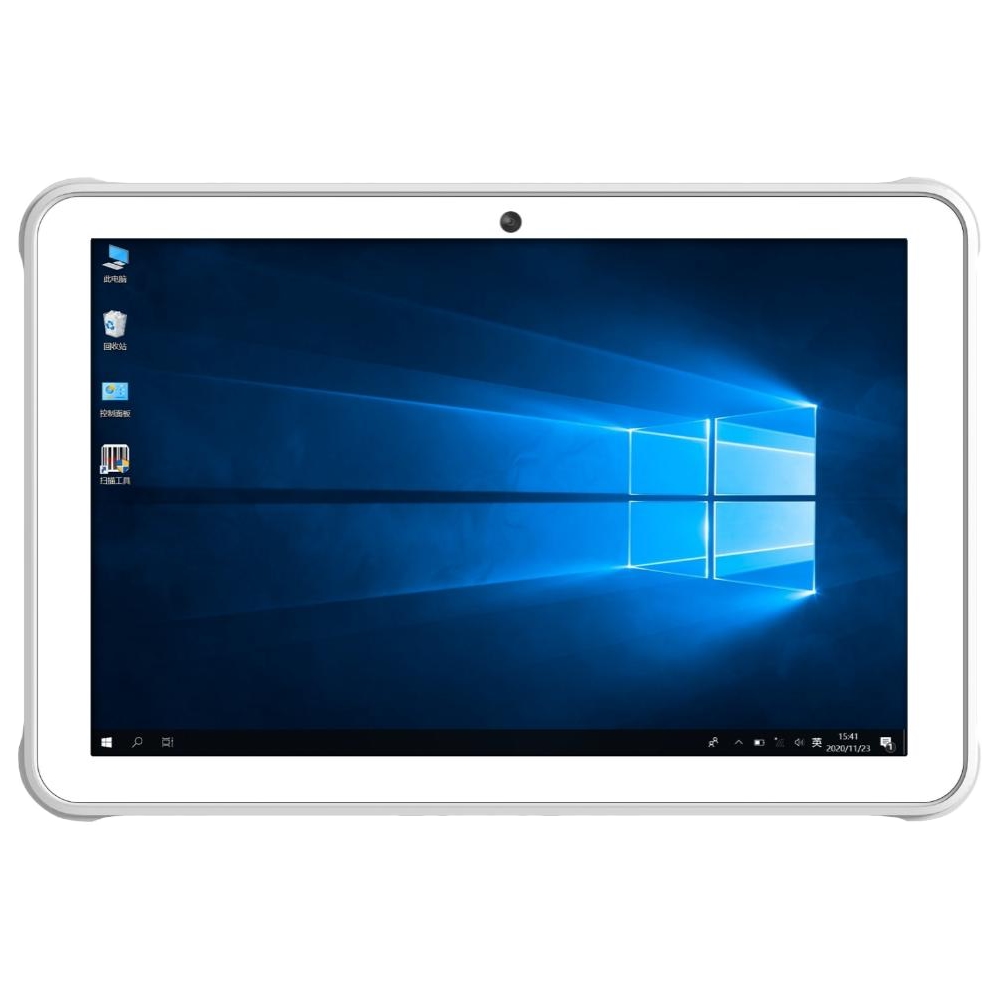

| Display screen | 11.0 inch full view LCD, capacitive 10-point touch, glove/water touch supported |
| Resolution 1920×1200, normal brightness (customizable highlight 800 nit) | |
| Power supply | Maximum input power 27 W DC IN： bottom contact interface |
| Detachable 7.7 V lithium ion rechargeable battery
mAh 5070 typical 4920 mAh rating |
|
| USB TYPE-C interface, support PD fast charging | |
| Bottom contact extension interface | USB2.0、5V output, DC input, IO |
| Indicator | One red and green double color: red charge indication, green working state indication.
A red and blue double color lamp: blue (reserved), red scan indicator lamp. |
| Audio | Built-in stereo speaker ,4Ω2W*2. Built-in double microphone. support TypeC digital headset. |
| Sensor | Acceleration sensors, ambient light sensors |

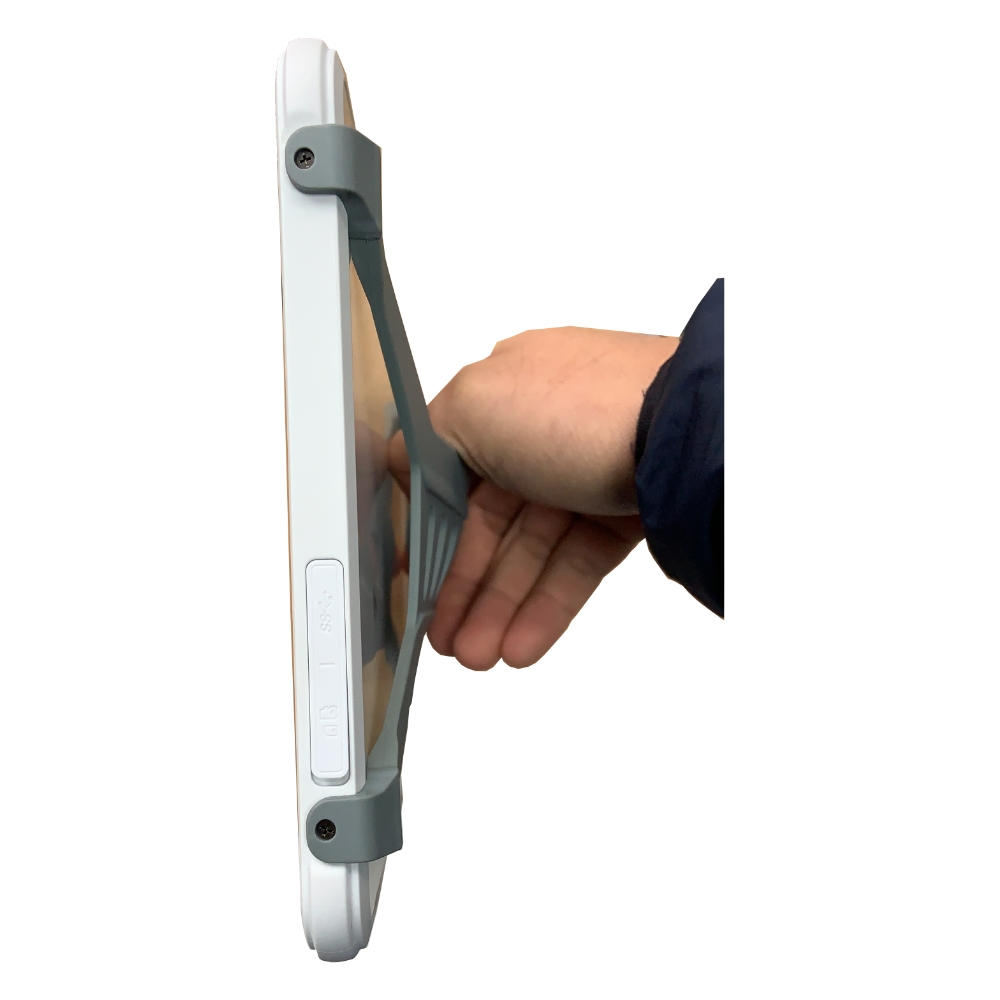

| Hand strap | Standard |
| Size | 258*173*10.8(12) mm |
| Weight (including standard batteries) | 690 g( Weight varies depending on configuration) |
| Working temperature | -10℃+50 |
| Storage temperature | -℃20 to +60 |
| Humidity | 5% to 95%RH No condensation |
| Waterproof and Dustproof Industrial Grade | IP 65 |
| Drop level | 1.2 m smooth marble |
| Electrostatic discharge (ESD) | ±15 kV air discharge ,±8 direct discharge |
II.Athena®Pad Air-(Win) Tablet Data Acquisition Function Parameters
| Function 1 | 2D Advanced Image Scanning Engine (Optional) |
| Image resolution | 1280*800 |
| View angle | °57.6 horizontal ,44.4 vertical |
| Resolution | mil 5 |
| LED complementary light source | Temperature :2700 K; Service life: IESNA LM-80 standard |
| Aimer | Figure: Cross laser graphics |
| Laser Safety Level | Class II |
| Support symbols | 1D：UPC/EAN,Code1 28, GS1-1 28, Code 39,Code 93,Interleaved 2of 5,Codabar, etc.
2D：PDF417,MicroPDF417,Data Matrix,QR Code,MicroQR etc (according to different software versions) |
| Working temperature | ℃0 to 50 |
| Lighting Light | White standard light source |
| Frame rate | 60 fps |
| Recognition accuracy | 1D code :3 m il
2D m il :4 |
| Function 2 | Geographic location information collection |
| Location | AGPS GPS+GLONASS+BeiDou+Galilieo,QZSS, support |
| Work model | GPS main positioning, Beidou, GLONASS、Galilieo auxiliary positioning |
| Frequency | GPS：L1(1.575 GHz); Beidou: B1(1.561 GHz); GLONASS: L1(1.602 GHZ) |
| Precision | 5-10 m |
| Function 3 | Image Acquisition of Front Camera |
| pixels | 2 million |
| Photo function | Fixed focus |
| Function 4 | Image acquisition of rear camera |
| pixels | 8 million |
| Photo function | Auto Focus |
| Flash flash | Photo mode flash |
| Function 5 | RFID (HF) |
| Readable labels | Supports ISO15693、ISO14443A/B( without encryption protocols), ISO14443A tags with encryption protocols (Mifare one S50,S70 and their compatible cards); |
| Working frequency | HF band 13.56 MHz |
| Read distance | Read distance 0~6 cm (ISO 15693),0-4cm (ISO 14443A/B (label-related) |
| Function 6 | Fingerprint capture (customizable) |
| Fingerprint collection | 508DPI,256*360pix, support fingerprint collection, second generation fingerprint module |
III.Athena®Pad Air-(Win) Tablet Wireless Data Communication Function Parameters
| Function 1 | Wireless LAN WIFI |
| Agreement | WIFI 6,IEEE 802.11a/b/g/n/ac/ax (2.4G/5G dual-frequency WIFI)2X2MIMO |
| Frequency range | The 2.4 GHz is usually 2.412 GHz-2.472GHz;5GHz 5.170 GHz-5.835GHz depending on the country or region |
| Working channel | CH1~CH13,CH34-CH64,CH100~144, CH149CH1~CH13,CH34-CH64,CH100~CH165 |
| Security | OPEN 、WEP 、WPA2-PSK (TKIP +AES), EAP-TLS, EAP-TTLS/MS-CHAPv2, PEAPv0-MSCHAPv2, AES, etc. Intel vPro Technology、Intel Active Management Technology |
| Transmission distance | 2.4 G greater than 250 m ,5 G greater than 200 m (industrial AP, open area) |
| Data rate | a：6,9,12,18,24,36,48,54Mbps 802.11
b：1,2,5.5,11Mbps 802.11 g：6,9,12,18,24,36,48,54Mbps 802.11 802.11 n：6.5,13,19.5,26,39,52,58.5,65Mbps (20 MHz, Long GI ,800 ns) 802.11 n：7.2,14.4,21.7,28.9,43.3,57.8,65,72.2Mbps (20 MHz, short GI ,400 ns) ac：20MHz/40MHz/80MHz/160MHz MCS0~MCS9 802.11 ax：20MHz/40MHz/80MHz/160MHz MCS0~MCS11 802.11 |
| Function 2 | Wireless WAN |
| Frequency | WCDMA：B1/B8
CDMA：BC0 TDD-LTE：B38/B39/B40/B41 FDD-LTE：B1/B3/B5/B8 |
| Communication rate | LTE-FDD maximum down 150 M, up 50 M
LTE-TDD down 130 M, up 35 M |
| Function 3 | Wireless LAN Bluetooth |
| Standards | Bluetooth 5.0(dual mode, support BLE) |
| Distance | More than 20 m (industrial Bluetooth adapter) |
IV.Athena®Pad Air-(Win) Third Party Application Development Support
| System software | Windows10 or Win11 |
| System programming environment | Visual Studio |
V.Athena®Pad Air-(Win) Accessories
| Standard fittings | Power adapter ×1, dual TYPEC data line ×1, hand strap ×1 |

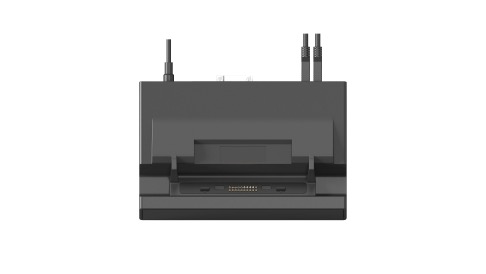

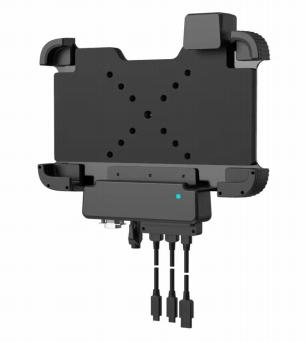

| Accessories | Single Multi-function Seat Charger, Silicone Protective Cover and Toughened Film |
