Parameter
System
| CPU | Quad core cortex A17,1.8G,RK3288 |
| RAM | 2GB |
| Internal memory | 16GB |
| Operation system | Android 8.1 |
| Touch screen | 10-Point capacitive touch |
Display
| Panel | 13.3″LCD panel |
| Resolution | 1920*1080 |
| Active area | 293.76(H)x165.24(V) |
| Display mode | Normally black |
| viewing angle | 80/80/80/80(L/R/U/D) |
| Contrast ratio | 600 |
| Luminance | 250cdm2 |
| Aspect Ratio | 16:9 |
Network
| WiFi | 802.11b/g/n/ac,2.4G/5G |
| Ethernet | 100M/1000M |
| Bluetooth | Bluetooth 4.0 |
Interface
| USB Device | Micro USB OTG |
| Power Jack | DC power input |
| RJ45 | RJ45（（POE IEEE802.3at,POE+,class4,25.5W ) |
| Serial port | Serial port |
| Earphone | 3.5mm earphone |
Media plays
| Video format | MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support up to 4k |
| Audio format | MP3/WMA/AAC etc. |
| Photo | jpeg |
Other
| Wall mounting bracket | 100mm*100mm wall mounting |
| NFC | Optional ,(NFC 13.56MHz,ISO14443A/ISO14443B/ISO 15693/Mifare classic/Sony felica) |
| Light sensor | Light sensor |
| Button | POWER/VOLUME+/VOLUME- |
| Speaker | 2*2W |
| Camera | 2.0M/P,front camera |
| Micphone | Single microphone |
| Language | Multi-language |
| Working temp | 0–40degree |
| Certificates |
Accessories
| Adapter | Adapter,12V/2A |
| User manual | yes |
Product Measurement
| Unit (Without packaging) | Giftbox (With Packaging) | Carton 5pcs/CTN | ||||||
|---|---|---|---|---|---|---|---|---|
| L | W | H | L | W | H | L | W | H |
| 337.3mm | 238.1mm | 25.1mm | 435mm | 75mm | 285mm | 450mm | 398mm | 305mm |
| Net(kg) | 1.21KG | Net(kg) | 1.73KG | Net(kg) | 9.45KG | |||
| G.W | ||||||||

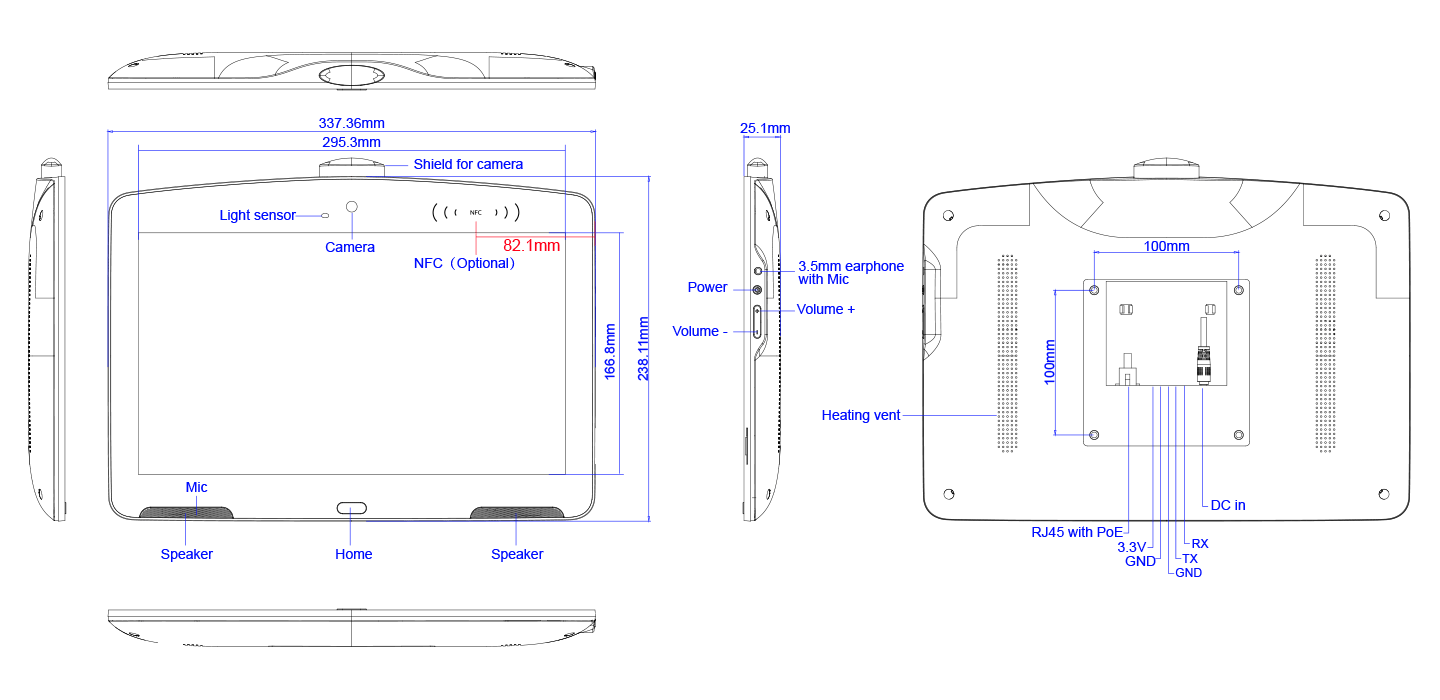

Structure
